MPX5010DP Pressure Sensor Price in Pakistan | NXP Sensor

SKU: MPX05

Original price was: ₨7,500.0.Current price is: ₨6,500.0.

18 in stock

Description

MPX5010DP Pressure Sensor Price in Pakistan | NXP Sensor

A MPX5010DP Pressure Sensor is a device that measures the pressure of a gas or liquid and converts it into an electrical signal. It is commonly used in industrial, automotive, medical, and consumer applications to monitor and control pressure in various systems.Chip.pk give best MPX5010DP Pressure Sensor Price in Pakistan.

Types of Pressure Sensors

  1. Absolute Pressure Sensors – Measure pressure relative to a perfect vacuum (0 Pa).
  2. Gauge Pressure Sensors – Measure pressure relative to atmospheric pressure (e.g., tire pressure).
  3. Differential Pressure Sensors – Measure the difference between two pressure points (e.g., airflow measurement).

Working Principle

Most pressure sensors operate using one of the following principles:

  • Strain Gauge – Converts pressure-induced strain into an electrical resistance change.
  • Capacitive – Measures pressure by detecting changes in capacitance due to diaphragm displacement.
  • Piezoelectric – Generates a voltage when subjected to pressure.
  • Optical – Uses light variations due to pressure changes.

Applications

  • Automotive – Tire pressure monitoring, fuel injection systems.
  • Industrial – Hydraulic and pneumatic systems.
  • Medical – Blood pressure monitors, respiratory equipment.
  • Consumer Electronics – Smartphones (barometers), wearable devices.

MPX5010DP Sensor:-

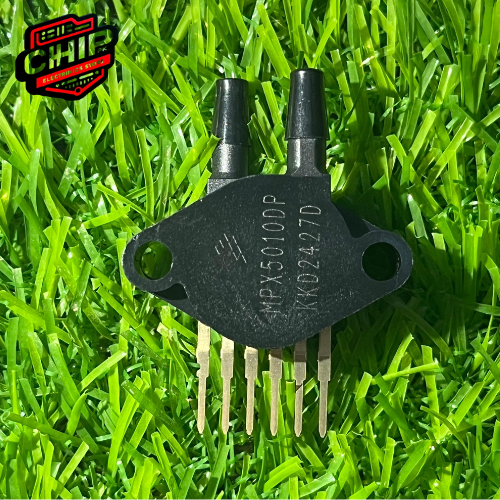

The MPX5010DP is a differential/gauge pressure sensor from NXP (formerly Freescale). It is designed to measure low-pressure values and output a proportional analog voltage signal.

Key Features of MPX5010DP

  • Pressure Range: 0 to 10 kPa (0 to 1.45 psi)
  • Type: Differential/Gauge Pressure Sensor
  • Output: 0.2V to 4.7V Analog Voltage (proportional to pressure)
  • Supply Voltage: 4.75V to 5.25V
  • Accuracy: ±5% full-scale
  • Ports: Dual Port (DP) for differential pressure measurement
  • Temperature Range: -40°C to +125°C

Working Principle

  • The MPX5010DP has two pressure ports. It measures the difference between the pressures at these two ports.
  • The sensor uses piezoelectric sensing technology, where a diaphragm deforms under pressure, generating a proportional electrical signal.
  • The built-in signal conditioning circuit amplifies and converts this into an analog output voltage.

Applications

Medical Devices – Respiratory equipment, ventilators
HVAC Systems – Airflow monitoring
Industrial Automation – Pressure monitoring in pneumatic systems
Liquid Level Measurement – Detecting pressure in tanks

Pinout Configuration

Pin Function
1 Vout (Analog Output)
2 Ground (GND)
3 Vcc (Supply 5V)

Detailed Overview of the MPX5010DP Pressure Sensor

The MPX5010DP is a differential and gauge pressure sensor from NXP Semiconductors that provides accurate pressure measurements for a wide range of applications. It is an integrated silicon pressure sensor with built-in signal conditioning circuitry, making it easy to interface with microcontrollers and other analog signal processing units.


1. Key Specifications

Parameter Value
Pressure Range 0 to 10 kPa (0 to 1.45 psi)
Pressure Type Differential/Gauge
Output Type Analog Voltage (0.2V to 4.7V)
Supply Voltage (Vcc) 4.75V to 5.25V
Accuracy ±5% Full Scale
Response Time 1 ms
Operating Temperature -40°C to +125°C
Media Compatibility Dry air, non-corrosive gases
Ports Dual-port (for differential pressure sensing)

2. Working Principle

The MPX5010DP operates using piezoelectric pressure sensing technology, where a thin silicon diaphragm flexes under pressure. The strain in the diaphragm causes changes in electrical resistance, which are converted into an analog voltage output proportional to the applied pressure.

  • Gauge Mode: Measures pressure relative to atmospheric pressure. One port is open to the environment.
  • Differential Mode: Measures the pressure difference between the two ports.

Output Voltage vs. Pressure Relationship

  • The output voltage is linearly proportional to the applied pressure.
  • Formula: Vout=Voffset+(Sensitivity×P)V_{\text{out}} = V_{\text{offset}} + (Sensitivity \times P) Where:
    • Voffset=0.2VV_{\text{offset}} = 0.2V (when no pressure is applied)
    • Sensitivity = 450 mV/kPa
    • PP = Applied Pressure in kPa

Example:

  • At 0 kPa, output ≈ 0.2V
  • At 5 kPa, output ≈ 2.45V
  • At 10 kPa, output ≈ 4.7V

3. Pin Configuration

The MPX5010DP has three pins for easy connectivity:

Pin Label Description
1 Vout Analog output voltage (proportional to pressure)
2 GND Ground
3 Vcc Power supply (5V)

4. Applications of MPX5010DP

✅ Medical & Healthcare

  • Ventilators – Monitors airflow and pressure in breathing systems
  • Blood pressure monitors – Measures pressure in medical devices
  • CPAP Machines – Helps regulate pressure for sleep apnea treatment

✅ Industrial & Automation

  • HVAC Systems – Monitors air pressure for air conditioning and ventilation
  • Flow Rate Measurement – Detects gas and liquid flow by measuring differential pressure
  • Pneumatic Systems – Ensures correct pressure in automated machinery

✅ Consumer & Home Applications

  • Liquid Level Measurement – Determines water or fuel level in tanks
  • Weather Stations – Measures barometric pressure for weather forecasting

5. Interfacing MPX5010DP with Arduino

🛠 Required Components

  • MPX5010DP Sensor
  • Arduino Uno/Nano
  • Connecting Wires
  • 5V Power Supply

🛠 Wiring Diagram

MPX5010DP Pin Arduino Pin
Vout (Pin 1) A0 (Analog Input)
GND (Pin 2) GND
Vcc (Pin 3) 5V

🛠 Sample Code (Arduino)

cpp
const int sensorPin = A0; // MPX5010DP Output to Analog Pin A0
float pressure_kPa; // Pressure in kPa

void setup() {
Serial.begin(9600);
}

void loop() {
int sensorValue = analogRead(sensorPin);
float voltage = (sensorValue / 1023.0) * 5.0; // Convert to voltage
pressure_kPa = (voltage - 0.2) / 0.45; // Convert voltage to pressure

Serial.print("Pressure (kPa): ");
Serial.println(pressure_kPa);
delay(500);
}

Explanation:

  • Reads the analog voltage from the sensor.
  • Converts it into pressure in kPa.
  • Displays the pressure value on the serial monitor.

6. Pros & Cons of MPX5010DP

Advantages

High Accuracy (±5% Full Scale)
Built-in Signal Conditioning – No external amplifier required
Fast Response Time (~1 ms)
Works in Harsh Environments (-40°C to +125°C)

Disadvantages

Limited to Non-Corrosive Gases – Cannot be used for liquids
Fixed Output Range (0.2V – 4.7V) – Requires an ADC for digital systems


7. Alternative Pressure Sensors

Model Pressure Range Output Type Best for
MPX5100DP 0-100 kPa Analog Higher pressure applications
BMP280 300-1100 hPa Digital (I2C/SPI) Barometric & altitude sensing
MS5611 10-1200 mbar Digital (I2C/SPI) High-precision weather stations

Customer Support:-

  • Available 24/7
  • Phn # 03091416242
  • Mail # Cpakstore@gmail.com

Package Include:-

  • 1 X MPX5010DP
