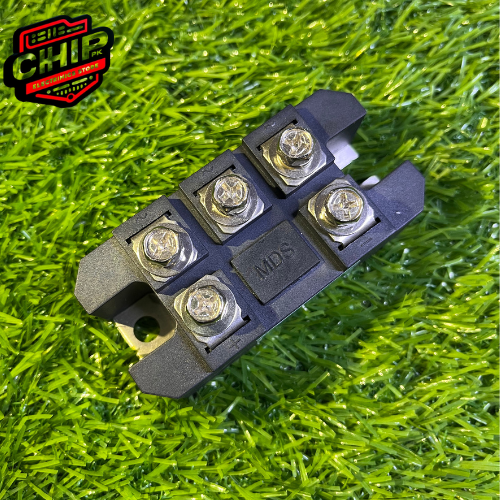

IGBT Bridge Price in Pakistan | 100A 1600V Bridge For IGBT
An IGBT Bridge is a power electronic circuit that uses Insulated Gate Bipolar Transistors (IGBTs) arranged in a bridge configuration (typically full-bridge or half-bridge) to convert and control high-power electrical energy. IGBTs are chosen for their ability to handle high voltages and currents while offering fast switching speeds.Chip.pk give best IGBT Bridge Price in Pakistan.
Key Features of an IGBT Bridge 100A 1600V :
- Bridge Topology:
- Commonly used configurations include H-bridge (full-bridge) or half-bridge, allowing bidirectional power flow.
- Used in inverters, converters, motor drives, and power supplies.
- Switching Functionality:
- IGBTs act as electronic switches, turning on/off to regulate power flow.
- PWM (Pulse Width Modulation) is often used for precise control.
- Applications:
- Motor drives (AC/DC/ Servo)
- Renewable energy systems (solar/wind inverters)
- Industrial welding machines
- Uninterruptible Power Supplies (UPS)
- Electric vehicle (EV) charging systems
100A 1600V IGBT Bridge – Explanation
A 100A 1600V IGBT Bridge is a high-power module designed to handle:
- Maximum Current: 100 Amperes (continuous)
- Maximum Voltage: 1600 Volts (blocking voltage)
Key Characteristics:
- High Voltage & Current Handling:
- Suitable for industrial and heavy-duty applications requiring high power (e.g., industrial motor drives, traction systems).
- The 1600V rating ensures reliability in high-voltage DC/AC systems.
- Low Conduction & Switching Losses:
- IGBTs minimize power loss, improving efficiency.
- Often paired with anti-parallel diodes for freewheeling current.
- Thermal Management:
- Requires a heatsink or cooling system (liquid/forced air) due to high power dissipation.
- Modular Design:
- Often comes as a power module with multiple IGBTs and diodes in a single package.
- Examples: Infineon, Mitsubishi, SEMIKRON modules.
- Protection Features:
- Built-in short-circuit protection, overcurrent/overvoltage shutdown, and temperature sensors.
Example Applications:
- High-power inverters (solar/wind energy systems)
- Electric trains & trams (traction converters)
- Industrial welding equipment
- High-voltage DC (HVDC) power transmission
Conclusion
A 100A 1600V Bridge is a robust power module designed for high-voltage, high-current applications where efficient switching and reliability are critical. Its ability to handle large power loads makes it essential in industrial, renewable energy, and transportation systems.
The key difference between an IGBT and an IGBT Bridge lies in their structure and functionality. Here’s a breakdown:
1. IGBT (Insulated Gate Bipolar Transistor)
- Definition: A single semiconductor device that acts as a switch for high-power applications.
- Function:
- Can switch ON/OFF high voltage and current (e.g., 100A, 1600V).
- Combines the fast switching of a MOSFET with the high current handling of a BJT.
- Applications:
- Used in inverters, motor drives, power supplies, and UPS systems.
- Typically requires external circuitry for complex operations (e.g., AC conversion).
2. IGBT Bridge
- Definition: A circuit configuration using multiple IGBTs (usually 4 or 6) arranged in a bridge topology (H-bridge, 3-phase bridge).
- Function:
- Enables bidirectional power flow and AC/DC conversion.
- Used for full-wave rectification, inversion, or motor control.
- Commonly controlled using PWM signals for variable output.
- Applications:
- Motor drives (e.g., servo & induction motors).
- Solar/wind inverters.
- Industrial welding machines.
- Electric vehicle powertrains.
Key Differences
Feature | IGBT (Single Device) | IGBT Bridge (Circuit) |
---|---|---|
Structure | Single transistor | Multiple IGBTs in a bridge (H-bridge, 3-phase) |
Function | Acts as a switch | Converts/controls power bidirectionally |
Complexity | Requires external circuitry for AC/DC conversion | Self-contained power conversion |
Applications | Basic switching tasks | Inverters, motor drives, power converters |
Example | 100A 1600V IGBT | 100A 1600V IGBT H-bridge module |
Summary
- An IGBT is a single switching device, while an IGBT Bridge is a pre-configured circuit using multiple IGBTs for advanced power control.
- IGBT Bridges are used where AC/DC conversion, motor control, or bidirectional power flow is needed.
- A 100A 1600V IGBT Bridge would typically be a module (like SEMIKRON or Infineon) with built-in IGBTs, diodes, and protection circuits.
Specific IGBT Bridge Circuit Example: 3-Phase Inverter (100A 1600V)
A common high-power IGBT bridge application is a 3-phase inverter, used in motor drives, renewable energy systems, and industrial automation. Below is a breakdown of its structure and operation:
1. Circuit Diagram (Simplified)
A 3-phase IGBT bridge consists of 6 IGBTs (with anti-parallel diodes) arranged in three legs (one for each phase: U, V, W):
DC Input (+VDC) │ ├──[IGBT1]───┬── Phase U │ [Diode1] │ ├──[IGBT3]───┬── Phase V │ [Diode3] │ ├──[IGBT5]───┬── Phase W │ [Diode5] │ │ │ ├──[IGBT4]───┘ │ [Diode4] ├──[IGBT6]───┘ │ [Diode6] ├──[IGBT2]───┘ │ [Diode2] │ DC Input (-VDC / GND)
2. Key Components
- IGBTs (100A 1600V):
- Six IGBTs (e.g., Infineon FF100R16XT4) rated for 100A continuous current and 1600V blocking voltage.
- Anti-parallel Diodes:
- Fast-recovery diodes (integrated in most IGBT modules) for freewheeling current.
- Gate Drivers:
- Isolated drivers (e.g., Infineon 1ED020I12-F2) to switch IGBTs safely.
- DC Bus Capacitors:
- Smooths input voltage (e.g., 1000µF, 900V electrolytic capacitors).
- PWM Controller:
- Generates switching signals (e.g., Microcontroller or DSP like TI C2000).
3. How It Works
- DC to AC Conversion:
- The IGBTs are switched in pairs (PWM-controlled) to generate 3-phase AC output.
- Example switching sequence for Phase U:
- IGBT1 ON → Positive voltage.
- IGBT4 ON → Negative voltage.
- Dead-time prevents shoot-through.
- Output Waveform:
- By modulating PWM duty cycles, a sinusoidal AC waveform is synthesized.
- Frequency and voltage are adjustable (e.g., 0-400Hz, 0-480V AC).
- Protection Features:
- Overcurrent protection (desaturation detection).
- Temperature monitoring (NTC thermistor).
- Snubber circuits to reduce voltage spikes.
4. Example Applications
- Industrial Motor Drives:
- Controls 3-phase induction/Servo motors (e.g., 10-100HP).
- Solar Inverters:
- Converts 600-1000V DC from solar panels to 380V AC.
- Electric Vehicle (EV) Powertrains:
- Drives traction motors (e.g., Tesla’s inverter uses similar IGBT bridges).
5. Real-World Module Example
SEMIKRON SEMiX453GB126HDs
- Rating: 100A, 1600V
- Topology: 6-pack IGBT bridge (3-phase).
- Features:
- Integrated NTC temperature sensor.
- Low-indunce design for high-frequency switching.
Conclusion
This 3-phase IGBT bridge demonstrates how multiple IGBTs work together to convert DC to AC efficiently. A 100A 1600V rating makes it suitable for heavy-duty industrial and renewable energy systems.
