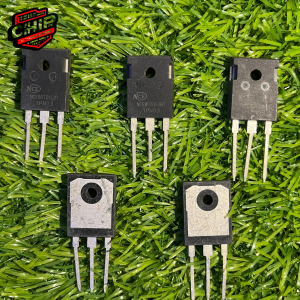

80TD65 IGBT Price in Pakistan | NEC 80A 650V IGBT
The 80TD65 is a high-power IGBT (Insulated Gate Bipolar Transistor) module designed for industrial and high-voltage applications.Chip.pk give best 80TD65 IGBT Price in Pakistan . Below is a detailed explanation of its key features and specifications:
1. Basic Specifications
- Voltage Rating (Vces): 650V
- Suitable for medium to high-voltage applications like motor drives, inverters, and power supplies.
- Current Rating (Ic): 80A (continuous)
- Can handle high current loads, making it ideal for heavy-duty applications.
- Package Type: Typically comes in a module format (like TO-247 or similar) with isolated base for better thermal performance.
2. Key Features
- Low Saturation Voltage (Vce(sat)):
- Ensures reduced conduction losses, improving efficiency.
- Fast Switching Speed:
- Optimized for high-frequency switching applications (e.g., PWM motor control).
- High Short-Circuit Withstand Time:
- Enhances reliability in fault conditions.
- Temperature Stability:
- Operates effectively in a wide temperature range (typically -40°C to 150°C).
3. Applications
- Motor Drives: Used in industrial motor control (AC/DC drives).
- Power Inverters: For solar inverters, UPS systems, and welding machines.
- Industrial Power Supplies: High-efficiency switched-mode power supplies (SMPS).
- Electric Vehicle (EV) Systems: In traction inverters and charging systems.
4. Comparison with Similar IGBTs
Parameter | 80TD65V | Similar IGBT (e.g., 75N65) |
---|---|---|
Voltage Rating | 650V | 650V |
Current Rating | 80A | 75A |
Switching Speed | Fast | Moderate |
Package | Module | TO-247 |
5. Why Choose the 80TD65?
- Higher current handling (80A) compared to standard 75A IGBTs.
- Better thermal performance due to module packaging.
- Optimized for industrial-grade reliability.
Conclusion
The 80TD65 IGBT is a robust power semiconductor device suited for high-power switching applications requiring 650V voltage blocking and 80A current capacity. Its low losses, fast switching, and thermal stability make it a preferred choice in industrial and renewable energy systems.
1. Electrical Characteristics (Detailed)
Absolute Maximum Ratings
Parameter | Symbol | Value | Unit |
---|---|---|---|
Collector-Emitter Voltage | V<sub>CES</sub> | 650 | V |
Gate-Emitter Voltage | V<sub>GES</sub> | ±20 | V |
Continuous Collector Current (Tc=25°C) | I<sub>C</sub> | 80 | A |
Peak Collector Current | I<sub>CM</sub> | 160 | A |
Maximum Power Dissipation | P<sub>D</sub> | ~300 | W |
Operating Temperature | T<sub>j</sub> | -40 to +150 | °C |
Key Electrical Parameters
Parameter | Symbol | Typical Value | Unit |
---|---|---|---|
Collector-Emitter Saturation Voltage | V<sub>CE(sat)</sub> | 1.8 – 2.5 | V (@80A) |
Gate Threshold Voltage | V<sub>GE(th)</sub> | 4 – 6 | V |
Turn-On Delay Time | t<sub>d(on)</sub> | 50 – 100 | ns |
Turn-Off Delay Time | t<sub>d(off)</sub> | 200 – 400 | ns |
Input Capacitance | C<sub>ies</sub> | ~5 – 10 | nF |
2. Gate Driving Requirements
To ensure fast switching and minimal losses, proper gate driving is crucial:
- Recommended Gate Voltage (V<sub>GE</sub>):
- Turn-On: +15V (for low V<sub>CE(sat)</sub>)
- Turn-Off: -5V to -15V (for fast turn-off & noise immunity)
- Gate Resistor (R<sub>G</sub>):
- Typically 5Ω to 20Ω (adjust based on switching speed & EMI needs).
- Lower R<sub>G</sub> → faster switching but higher voltage spikes.
- Higher R<sub>G</sub> → slower switching but reduced EMI.
- Gate Driver IC Example:
- IR2110, FAN7388, or 2ED020I12-F (for high-side driving).
Example Gate Drive Circuit
+15V ────┐ │ R<sub>G</sub> (10Ω) │ ├─── Gate -5V ─────┘
(A fast-recovery diode in anti-parallel with R<sub>G</sub> can improve turn-off speed.)
3. Thermal Management
Since IGBTs generate heat during operation, proper cooling is essential:
- Maximum Junction Temperature (T<sub>j</sub>): 150°C
- Thermal Resistance (Junction-to-Case): R<sub>th(j-c)</sub> ≈ 0.25°C/W
- Heat Sink Requirement:
- For 80A current & V<sub>CE(sat)</sub> ≈ 2V, power dissipation = I² × R (conduction) + switching losses.
- Estimated P<sub>loss</sub> ≈ 100W – 200W in typical applications.
- Required heat sink thermal resistance:
Rth(h−a)=Tj−TaPloss−Rth(j−c)−Rth(c−h)(Example: If T<sub>j</sub> = 125°C, T<sub>a</sub> = 40°C, P<sub>loss</sub> = 150W → R<sub>th(h-a)</sub> ≈ 0.3°C/W)
- Cooling Methods:
- Forced Air Cooling (with a fan)
- Liquid Cooling (for very high-power applications)
- Heat Pipes (for compact designs)
4. Protection Circuits
To prevent damage, the following protections are recommended:
- Overcurrent Protection (Desaturation Detection)
- Use a desat circuit (e.g., with a diode + comparator) to detect high V<sub>CE</sub> during a fault.
- Snubber Circuits (for Voltage Spikes)
- RC Snubber (e.g., 100Ω + 100nF) across C-E to dampen ringing.
- Temperature Monitoring
- NTC thermistor or thermal switch on the heat sink.
5. Typical Applications & Circuit Examples
A. Three-Phase Inverter (Motor Drive)
DC Bus (650V) │ ├───[80TD65]─── Motor Phase U ├───[80TD65]─── Motor Phase V └───[80TD65]─── Motor Phase W
(Each IGBT is driven by a PWM signal from a microcontroller via a gate driver.)
B. Half-Bridge Converter (For SMPS)
High-Side: [80TD65V] Low-Side: [80TD65V] Output: ──► LC Filter → Load
(Requires a bootstrap gate driver like IR2110.)
6. Comparison with MOSFETs & Other IGBTs
Feature | 80TD65 (IGBT) | MOSFET (e.g., IPW65R080CFD) | Higher IGBT (e.g., 100TD65) |
---|---|---|---|
Voltage Rating | 650V | 650V | 650V |
Current Rating | 80A | 80A (but lower at high V) | 100A |
Conduction Loss | Low (V<sub>CE(sat)</sub>) | High (R<sub>DS(on)</sub>) | Lower than MOSFET |
Switching Speed | Moderate | Very Fast | Slightly Slower |
Best For | High-power, medium frequency | High-frequency, low voltage | Higher current needs |
7. Where to Buy & Alternatives
- Manufacturer: Likely from Infineon, STMicroelectronics, or Fuji Electric.
- Alternatives:
- 75TD65 (lower current)
- 100TD65 (higher current)
- IKW75N65EH5 (similar specs, different package)
