An Insulated Gate Bipolar Transistor (IGBT) is a type of semiconductor used primarily for switching and amplification in power electronics. It combines the strengths of both MOSFETs (high input impedance and fast switching) and BJTs (ability to handle high current and voltage). IGBTs are widely used in applications such as motor drives, power inverters, and induction heating, thanks to their ability to efficiently switch high-power loads.Chip.pk give best 60N60 IGBT Price in Pakistan.

In simple terms, IGBTs are efficient switches for controlling large amounts of electrical power.

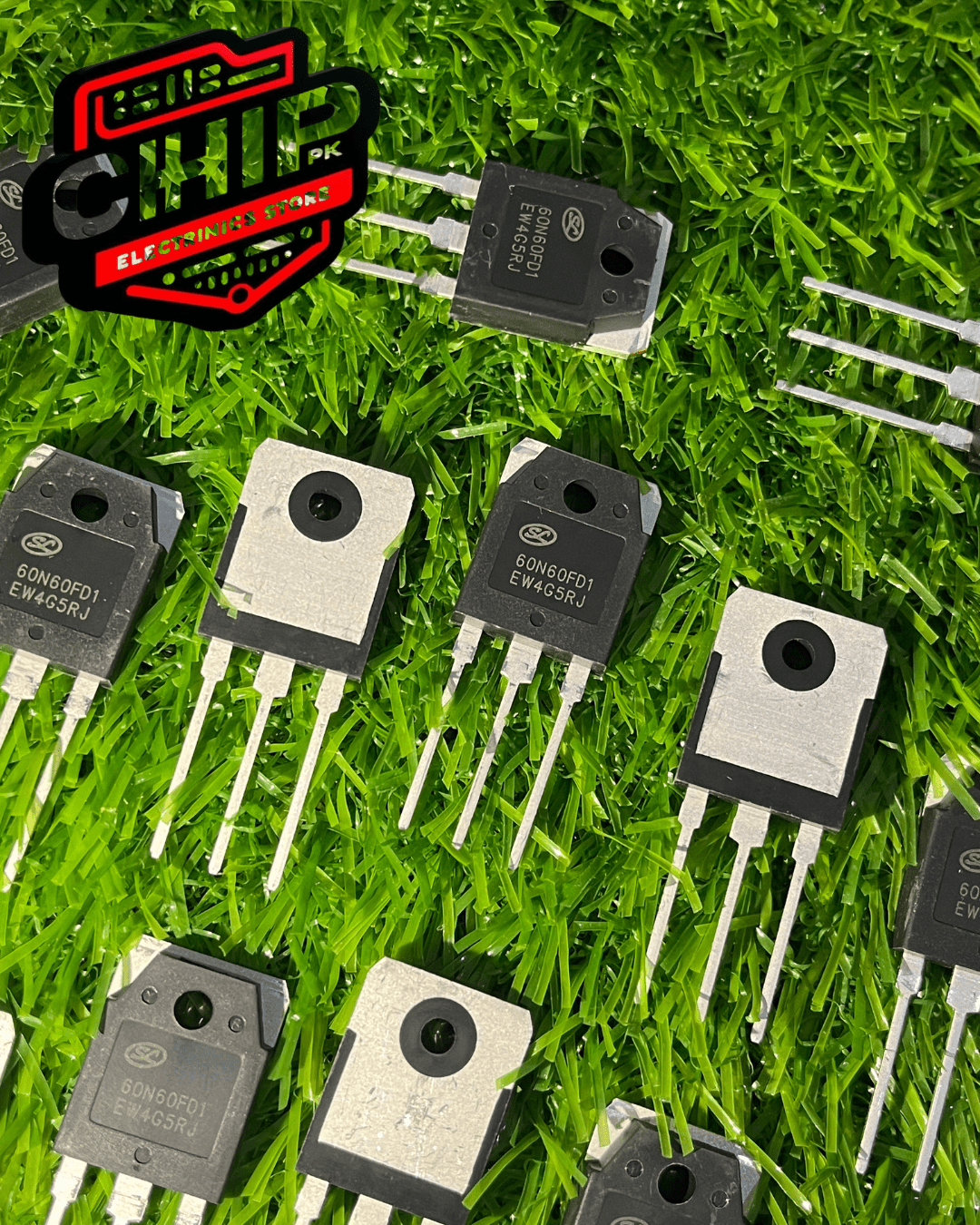

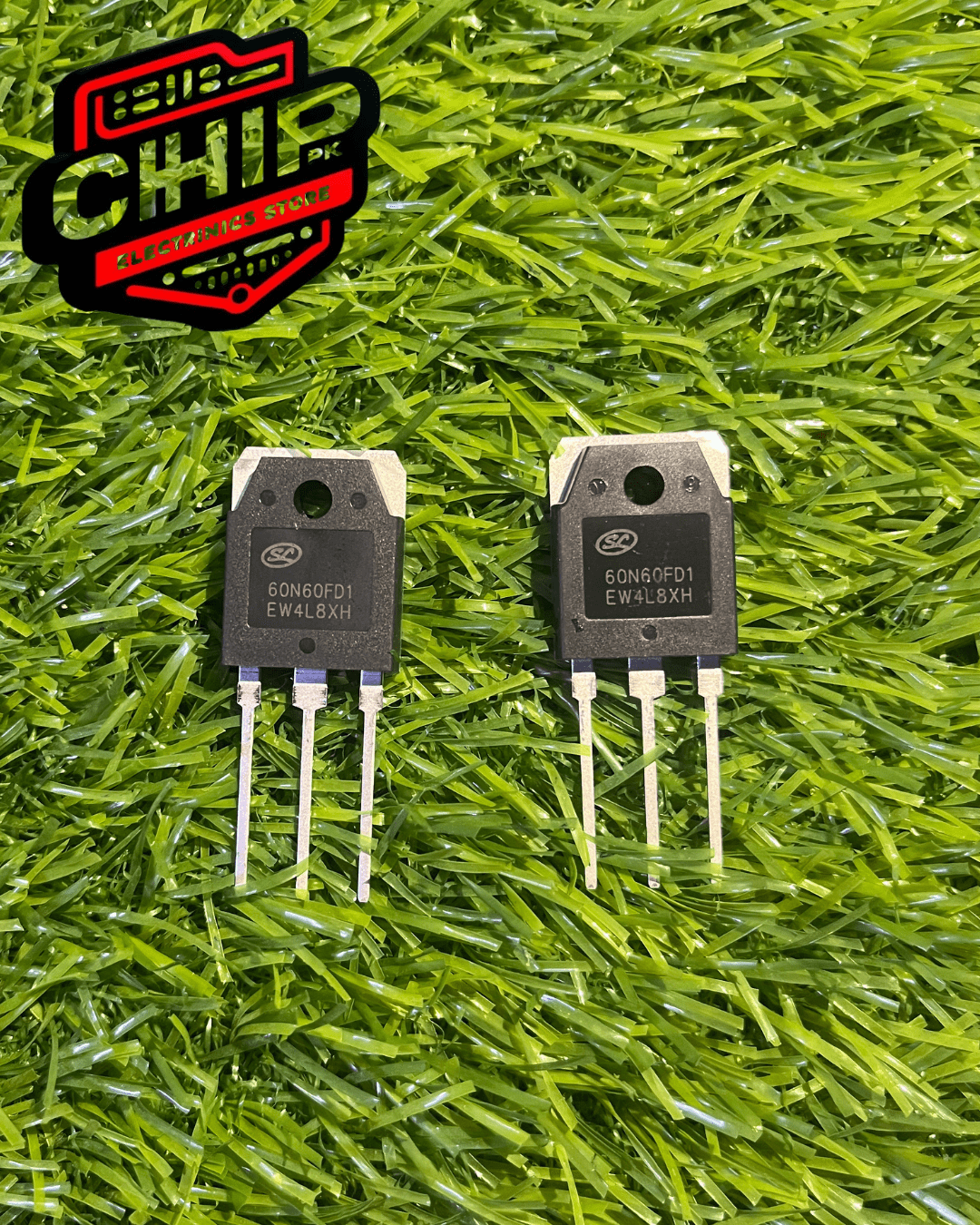

60N60 IGBT:

The 60N60 refers to a specific IGBT model with certain characteristics:

• 60: Indicates the voltage rating, which is 600V. This means the device can withstand up to 600V between its collector and emitter terminals when in the off state.
• N: This could indicate a specific product line or packaging (it often signifies a normal or standard version in certain datasheets, though manufacturers may use different naming conventions).
• 60: Refers to the current rating (in amperes). This specific IGBT can handle a 60A current, making it suitable for medium to high-power applications.

So, the 60N60 IGBT is a 600V, 60A device used in a variety of industrial and power electronics applications, capable of switching and controlling high power efficiently.

75T60 IGBT:

The 75T60 IGBT is another similar device, but with a higher current rating:

• 75: Indicates a current rating of 75A, which is higher than the 60A rating of the 60N60.
• T: This may indicate a different packaging or design specification, often denoting the thermal properties or type of package (again, this can vary by manufacturer).
• 60: The voltage rating is still 600V, similar to the 60N60.

So, the 75T60 IGBT can handle 75A of current while also being rated for 600V, making it suitable for applications where higher current is required compared to the 60N60.

Key Differences Between 60N60 and 75T60 IGBTs:

1. Current Rating:
   • 60N60: Rated for 60A of continuous current.
   • 75T60: Rated for 75A of continuous current. So, the 75T60 can handle more current, making it suitable for higher-power applications.
2. Packaging/Design:
   • The letters N and T in the model number could indicate different packaging types or slight differences in construction, though these are often specific to the manufacturer’s naming convention. For example, T could refer to a different thermal characteristic or physical package type.
3. Performance:
   • While both are 600V IGBTs, the 75T60 is likely better suited for applications where higher current handling is needed, and the 60N60 might be more suitable for moderate-power applications.

Practical Example:

• 60N60 might be used in a system where you need a 600V switch to control up to 60A of current, such as in a medium-sized motor control or power supply.
• 75T60 would be used in similar applications but in situations where you need to control up to 75A of current, such as in larger motor drives, industrial power converters, or high-power inverters.

Conclusion:

The main difference between the 60N60 and 75T60 is the current rating, with the 75T60 being able to handle a higher current (75A vs. 60A), which makes it more suitable for high-power applications. Both devices are rated for 600V and serve similar purposes in power electronics, but if you need more current handling capacity, the 75T60 is the better choice.

Let me know if you need any further clarification or if you’d like to dive deeper into specific applications!
