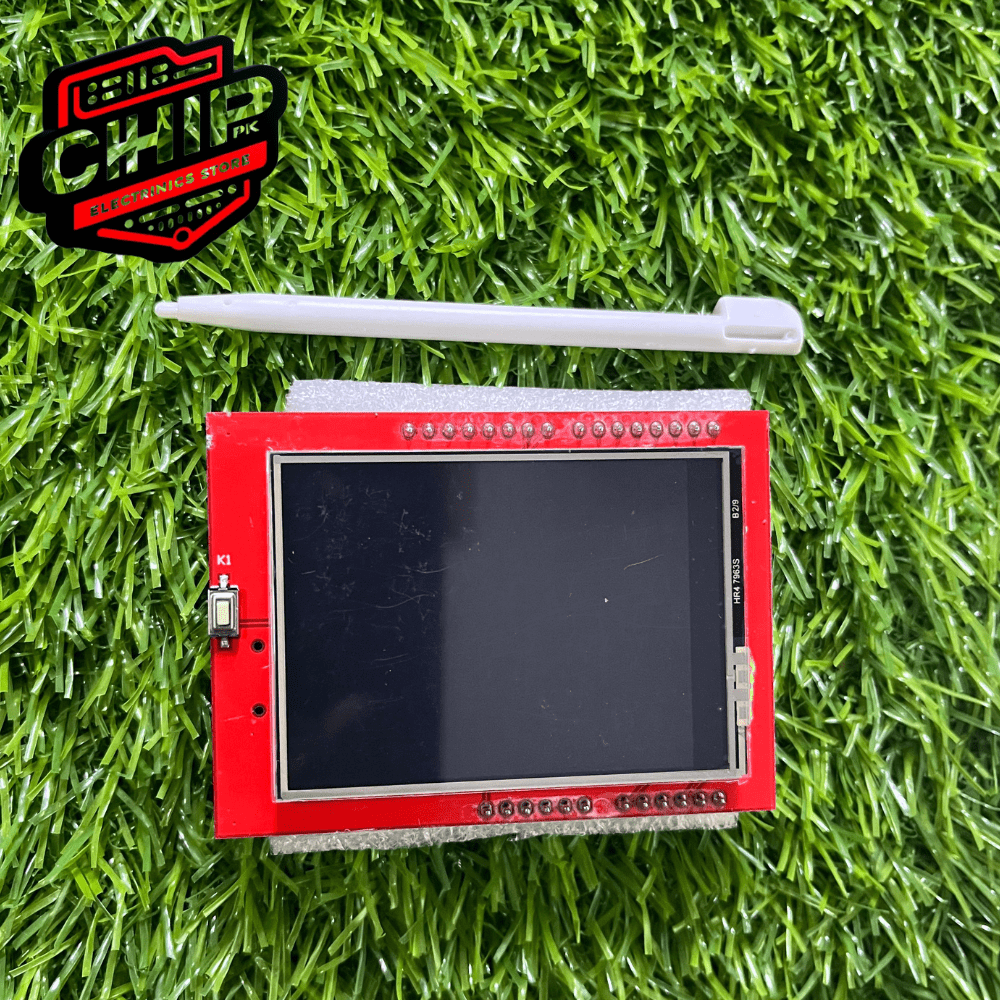

1. How the 2.4-inch TFT LCD Works:

Basic Structure:

A TFT LCD is a type of liquid crystal display that uses Thin Film Transistor (TFT) technology to control each individual pixel. The screen is made up of several layers:

• Glass Substrates: The display is built on layers of glass, with one layer acting as a base for the liquid crystals, and another layer containing the TFTs.
• Liquid Crystals: These are the core elements that adjust the light passing through them. Liquid crystals themselves don’t emit light but can bend or rotate when an electrical charge is applied. This action helps control the light and colors visible on the screen.
• Backlight: Since liquid crystals can only manipulate light but not generate it, a backlight (usually LED-based) is placed behind the screen to illuminate it. The crystals block or allow light to pass through, creating the image you see.

Color Display:

• RGB Subpixels: Each pixel is typically made up of three subpixels: Red, Green, and Blue. By adjusting the brightness of each subpixel, the TFT LCD can produce millions of colors, thanks to the combination of varying levels of red, green, and blue light.
• 16.7 Million Colors: A common TFT LCD supports 24-bit color depth, allowing for the display of over 16.7 million colors, which creates rich and vibrant visuals.

Touch Screen Integration:

Some 2.4-inch TFT LCDs are touch-sensitive, which means they can respond to user inputs like taps, swipes, or multi-touch gestures. This is made possible by an additional capacitive or resistive touchscreen layer on top of the display. Touchscreens allow for more interactive applications, which is why many small devices like portable games or control systems use this technology.

2. Applications of a 2.4-inch TFT LCD:

a. Portable Devices:

Small screens like the 2.4-inch TFT LCD are commonly found in portable, handheld devices. They offer a good balance between screen real estate and portability, while still providing decent image quality. Some examples include:

• MP3 Players: Small screens are used to display music information, album art, or menus.
• Portable Gaming Consoles: Devices like handheld game consoles use 2.4-inch TFT displays to show game graphics.
• Smartwatches & Wearables: While larger smartwatches use bigger displays, smaller models often use this size for displaying time, notifications, and simple apps.

b. DIY Electronics & Embedded Systems:

In DIY electronics and embedded systems (such as Arduino, Raspberry Pi, or other microcontroller projects), a 2.4-inch TFT LCD is a great choice due to its small size, good image quality, and ease of integration.

• Arduino Projects: You can use a 2.4-inch TFT LCD to display sensor data, control options, or visual feedback in your Arduino-based projects.
• Prototyping & HMI (Human Machine Interface): These small displays are ideal for creating control panels or interfaces in embedded systems, such as home automation or robotics.

c. Consumer Electronics:

Some consumer electronics use 2.4-inch TFT LCDs, including:

• Cameras: Small digital cameras often use a 2.4-inch display as a viewfinder or preview screen.
• Remote Controls: Advanced remote controls with small screens might use a 2.4-inch TFT display to show information such as the current settings or menus.

d. Diagnostic & Monitoring Systems:

Devices like medical equipment, test instruments, or industrial machines often use small TFT LCDs to display status messages, diagnostics, and measurements.

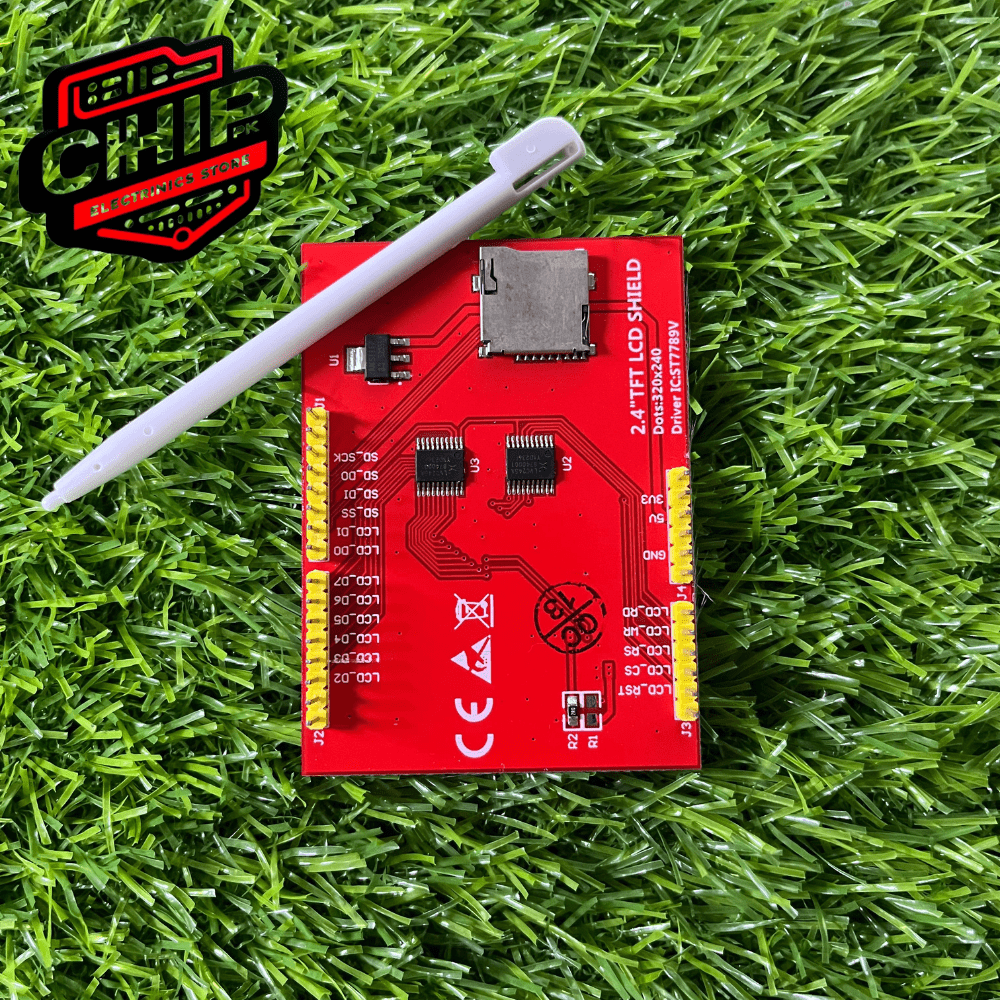

5. How to Connect a 2.4-inch TFT LCD to a Microcontroller (e.g., Arduino):

For projects like Arduino or Raspberry Pi, the 2.4-inch TFT LCD typically connects via a SPI (Serial Peripheral Interface) or parallel interface, depending on the specific model. Here’s a brief on how you might integrate it:

• Wiring: You connect the display’s pins (VCC, GND, CS, RESET, DC, SDI, SCK, etc.) to the respective pins on the microcontroller.
• Programming: Once connected, you’ll need to install a library (like the Adafruit TFT Library or MCUFRIEND for Arduino) to handle display control, drawing graphics, and managing touch events if the display is touch-enabled.
